PVC Pipe Extrusion Machine can produce PVC Pipe, UPVC Pipes for water supply and drainage, electric conduit. Pipe diameter range 16-630mm. Different model.
Inquire now
Add to cart
PVC UPVC Pipe Production Process:
Material Mixing-Extruder-Mould-Vacuum Calibrating Tank-Water Cooling Tank-Haul Off Machine-Cutting Machine-Stacker

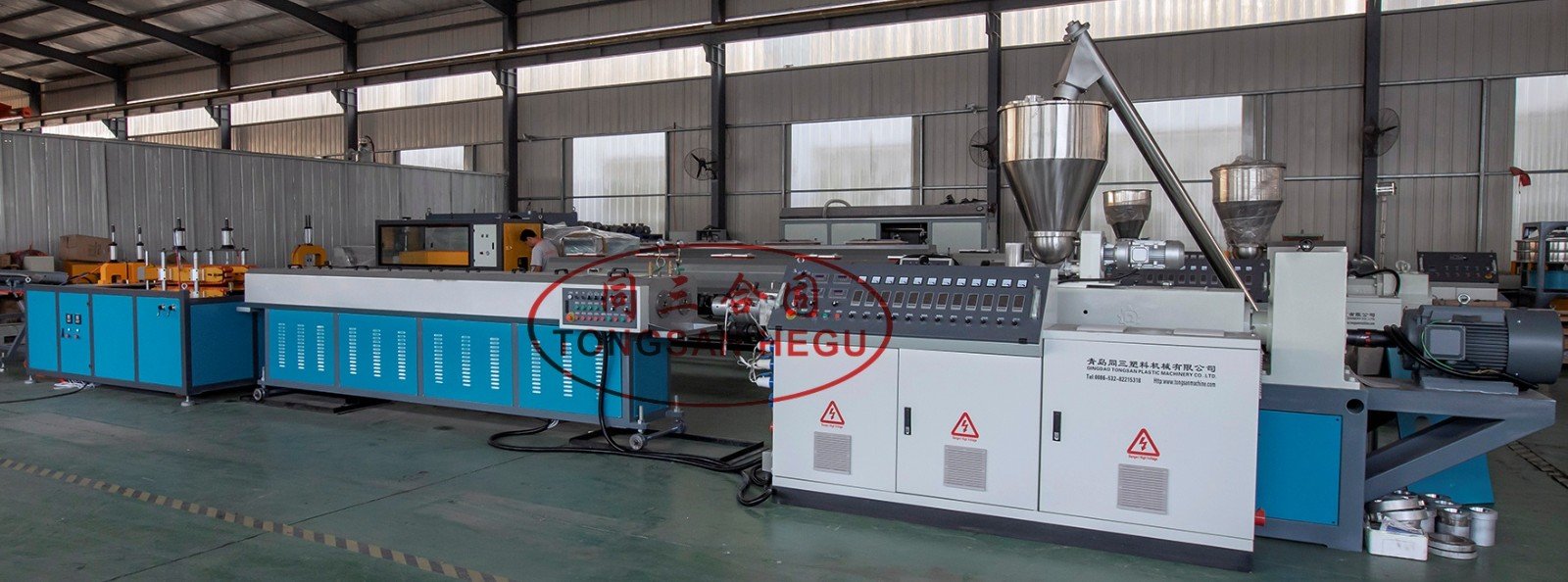

Details of PVC Pipe Production Line

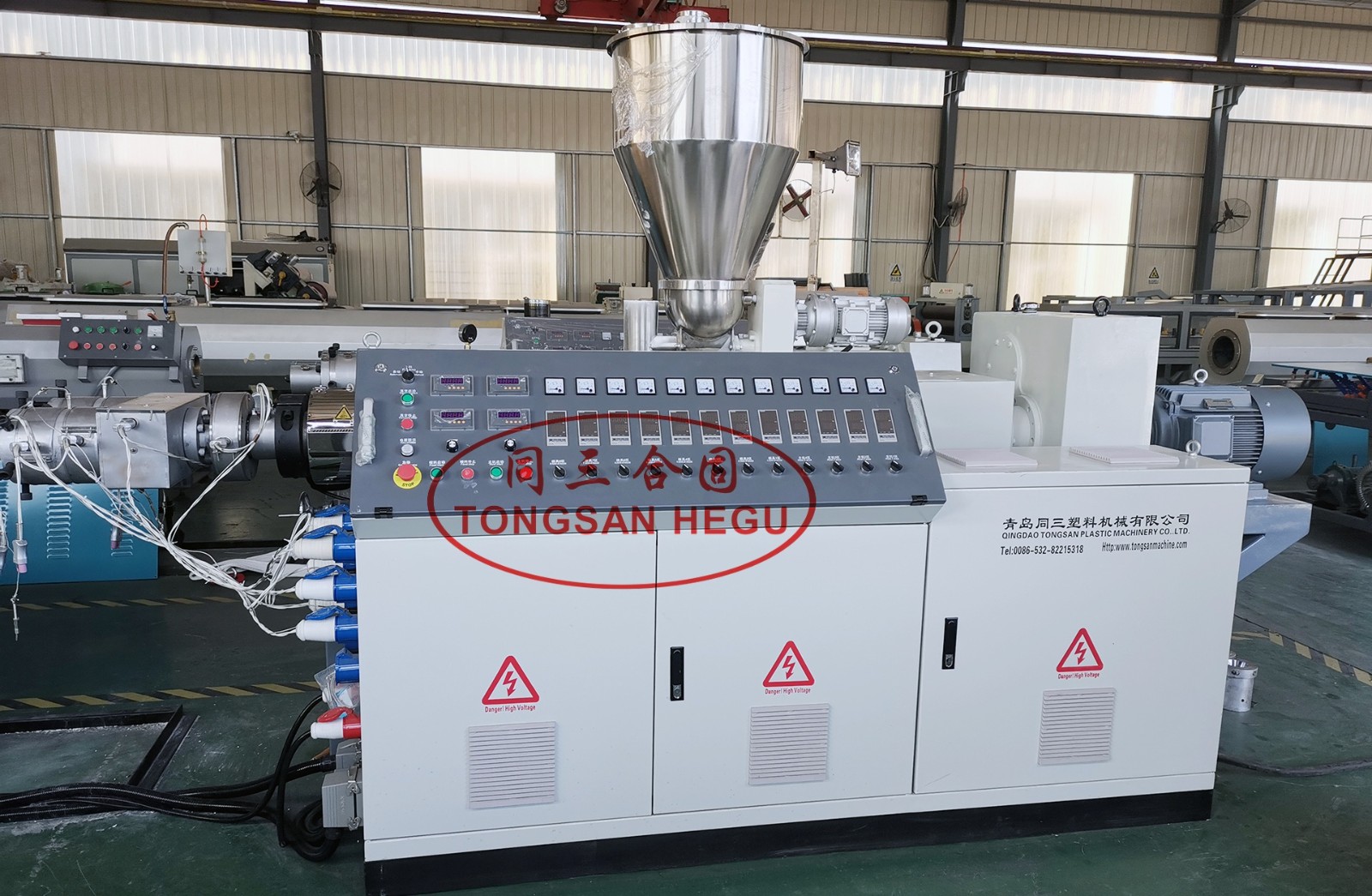

Conical Double Screw Extruder

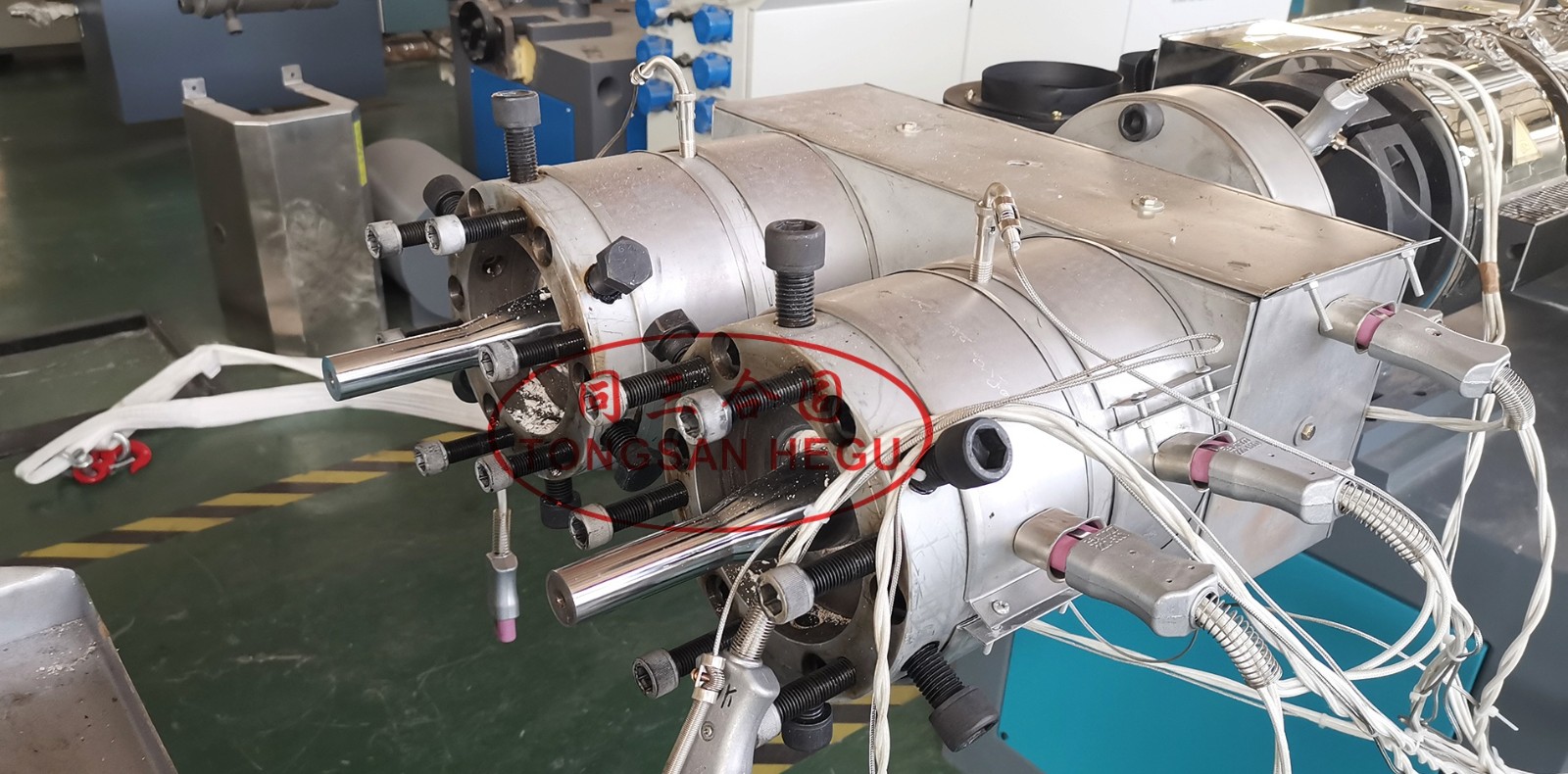

Extrusion Mould

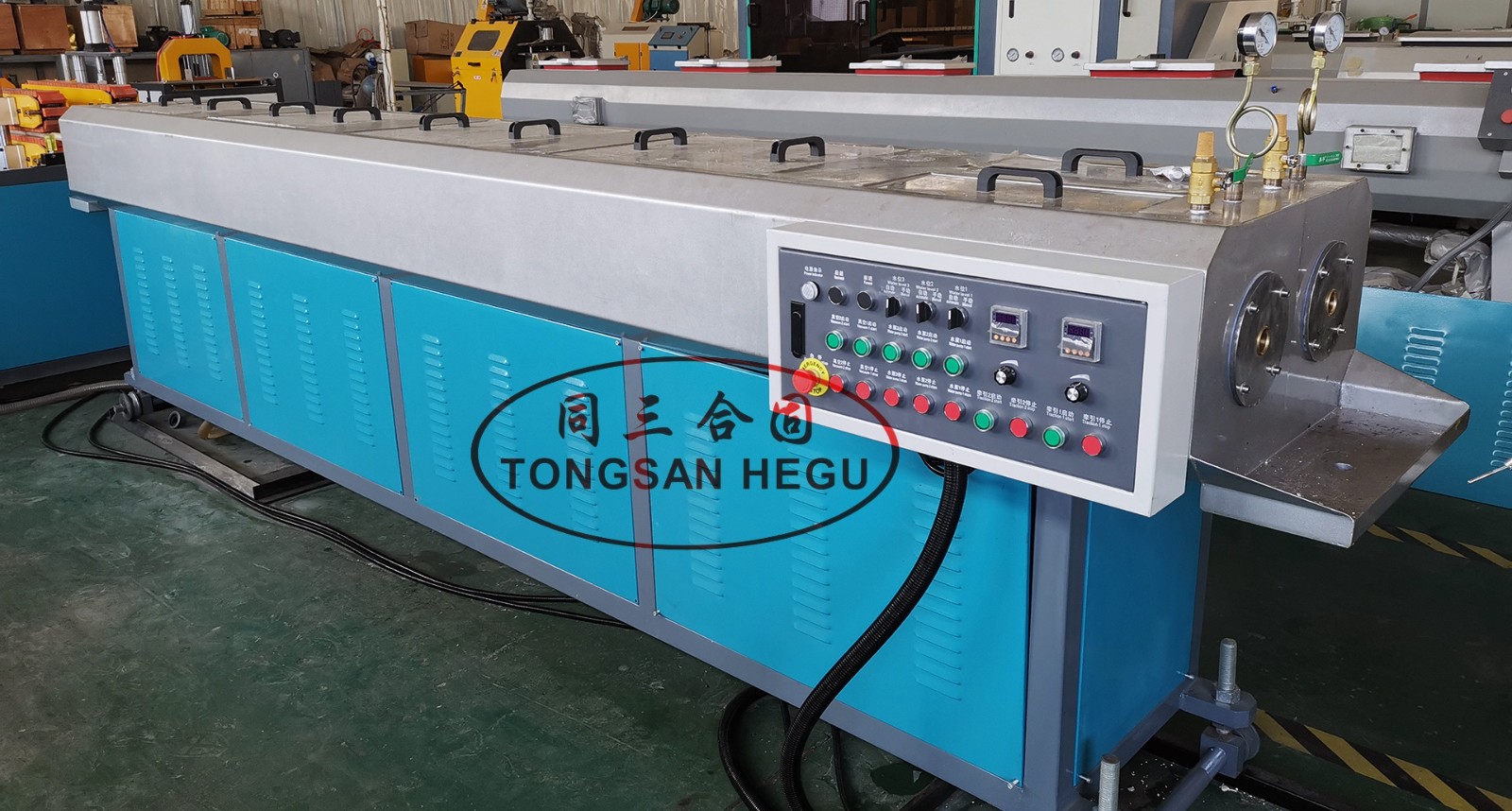

Vacuum Calibrating and Water Cooling Tank

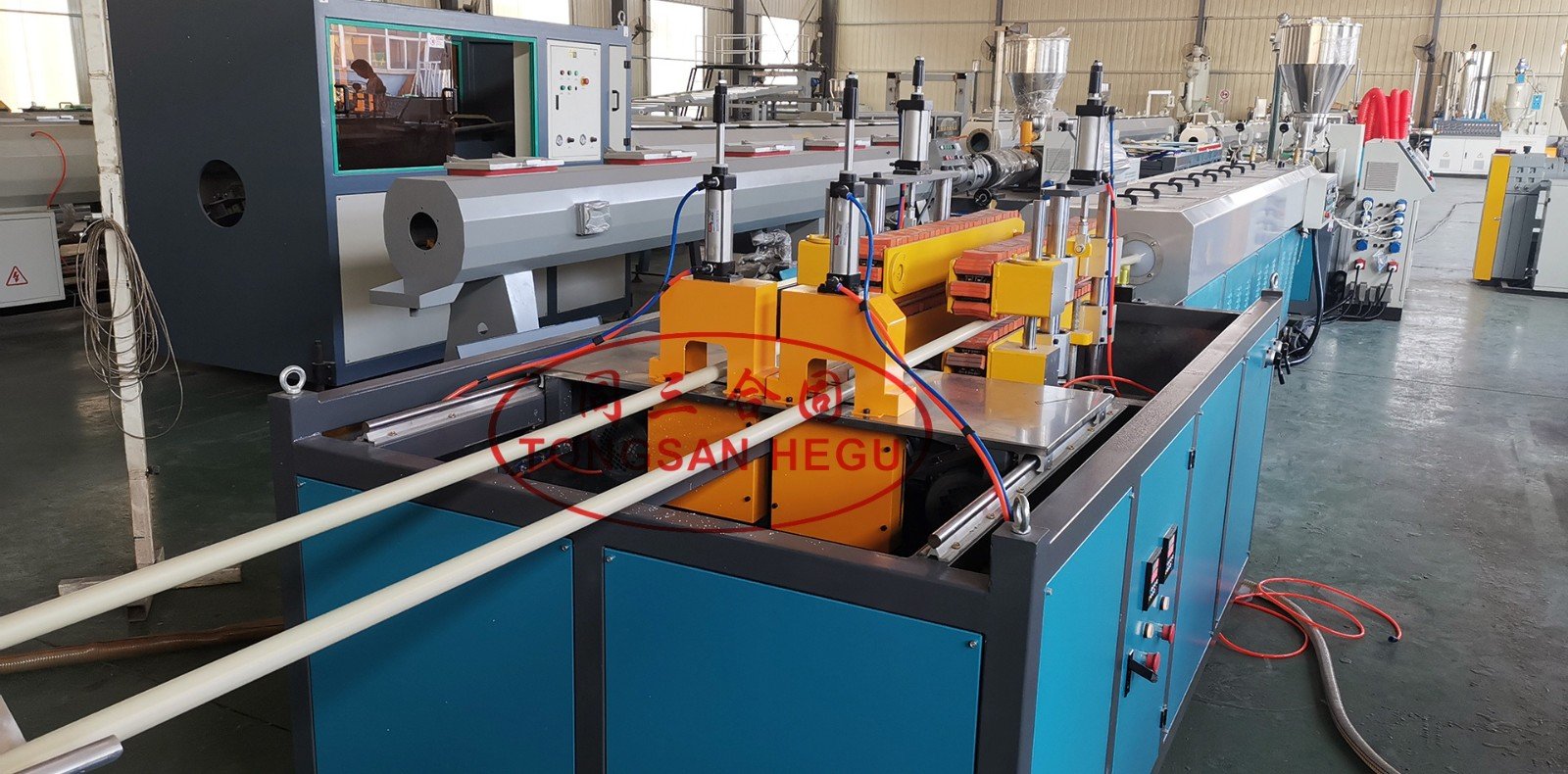

Haul Off and Cutter
Stacker
PVC Pipe Extrusion Machine Model
Mode
| Pipe range (mm) | extruders
| Max. output (kg/h) | Total power (kw) | Line length (m) |
TS-50*2 | 16-50 | SJSZ55/110 | 150 | 60w | 20m |
TS-63 | 16-63 | SJSZ51/105 | 120 | 45w | 20m |
TS-110 | 50-110 | SJSZ55/110 | 150 | 60w | 24m |
TS-160 | 63-160 | SJSZ65/132 | 300 | 100w | 24m |
TS-250 | 110-250 | SJSZ80/156 | 400 | 120w | 28m |
TS-315 | 160-315 | SJSZ 80/156 | 400 | 160w | 28m |
TS-450 | 250-450 | SJSZ 92/188 | 700 | 200w | 36m |
TS-630 | 315-630 | SJSZ92/188 | 700 | 230kw | 36m |
Auxiliary Machines for PVC Pipe
1. Belling Machine
2. Printing Machine
3. Threading Machine
4. Slotting Machine
