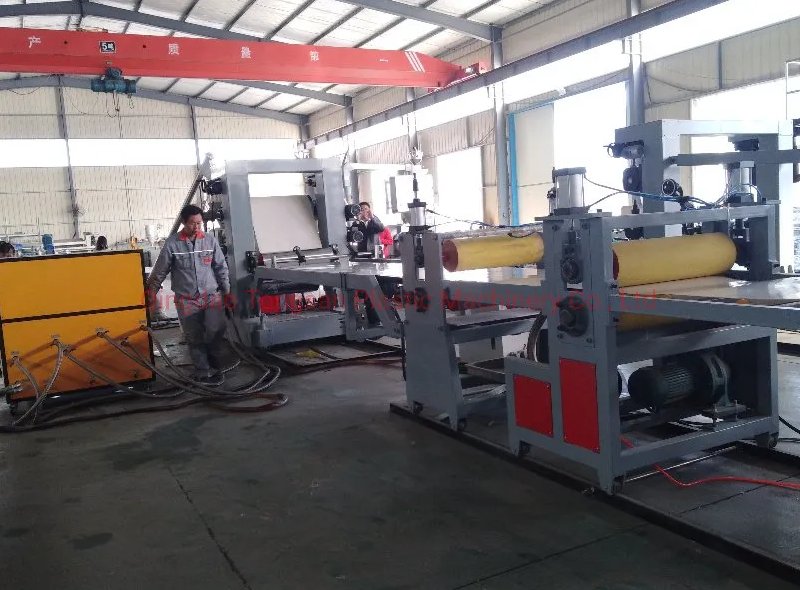

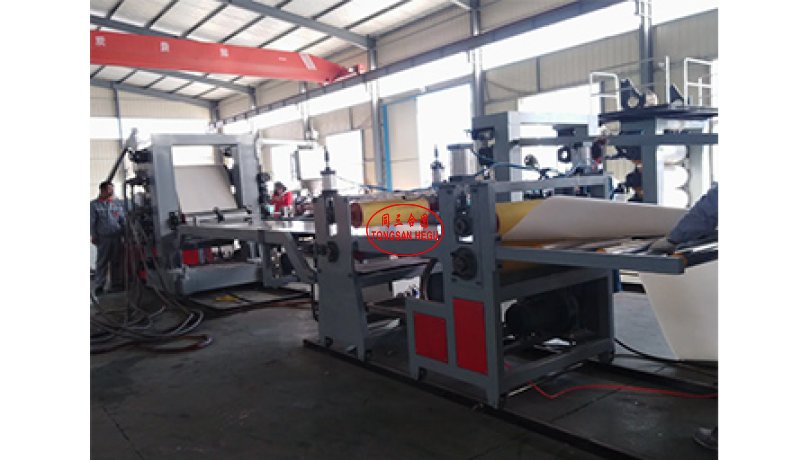

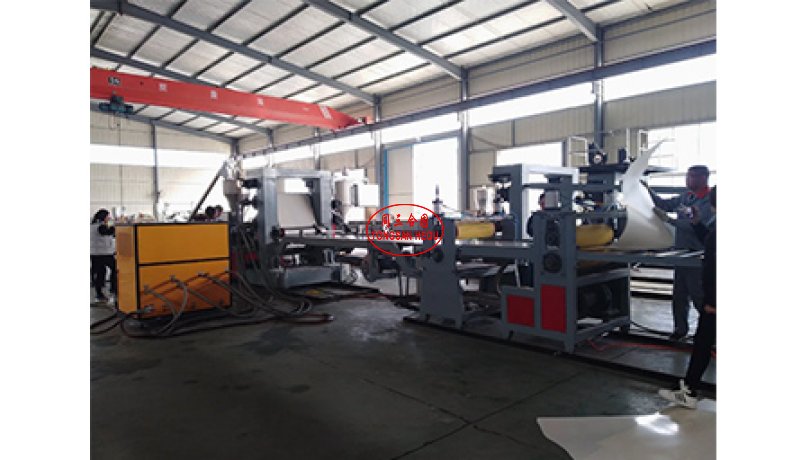

PVC Plastic Sheet Extrusion Machine
This machine is used for making PVC sheet using for sandwich panels, the width can be 2100mm, and thickness 1-4 mm, the PVC sheet shall be splitted into small width for making PVC edge banding
Inquire now
Add to cart
Product Details

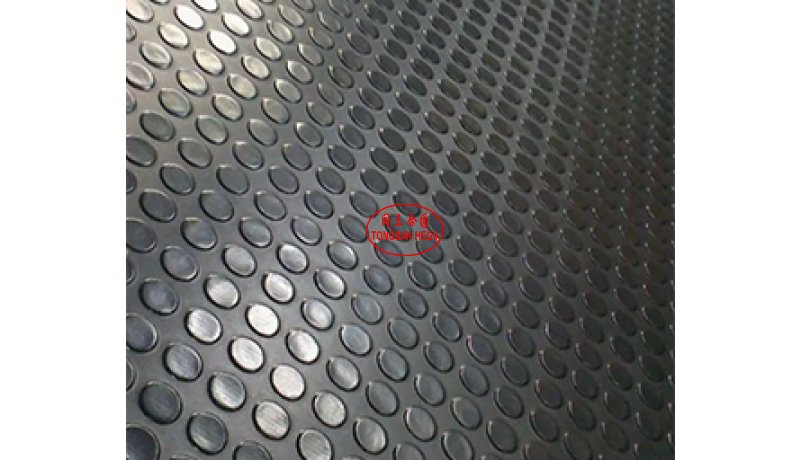

2000mm Soft PVC Sheet Coin Mat Making Machine SJMS80/156
This machine is used for making PVC sheet using for sandwich panels, the width can be 2100mm, and thickness 1-4 mm, the PVC sheet shall be splitted into small width for making PVC edge banding
Equipment list for PVC sheet manufacturing machine
| Machine list | Quantity |
| Material auto feeding | one set |
| SJSZ80/156 conical double screw extruder | one set |
| Die head and mold | one set |
| Three-roller calendaring machine | one set |
| Cooling bracket | one set |
| Hauling off device | one set |
| Cutting device | one set |
| Stainless steel stacker | one set |
| Electricity control system | one set |
Detailed Images

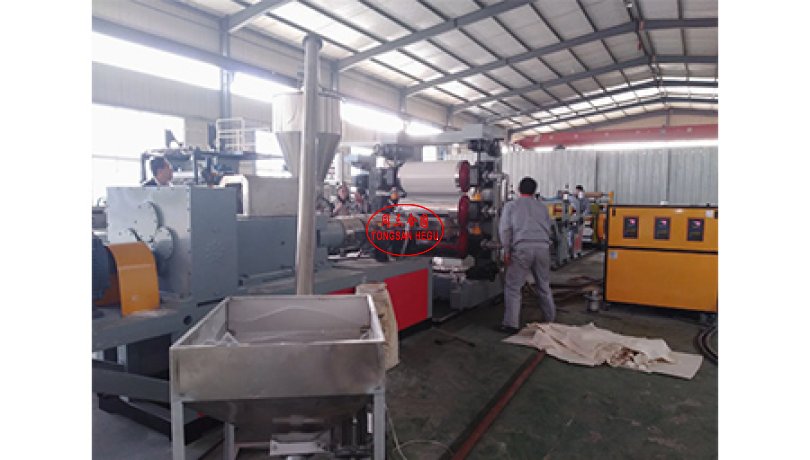

1,SJSZ80/156 conical double screw extruder with auto feeder
2,Die head and mould

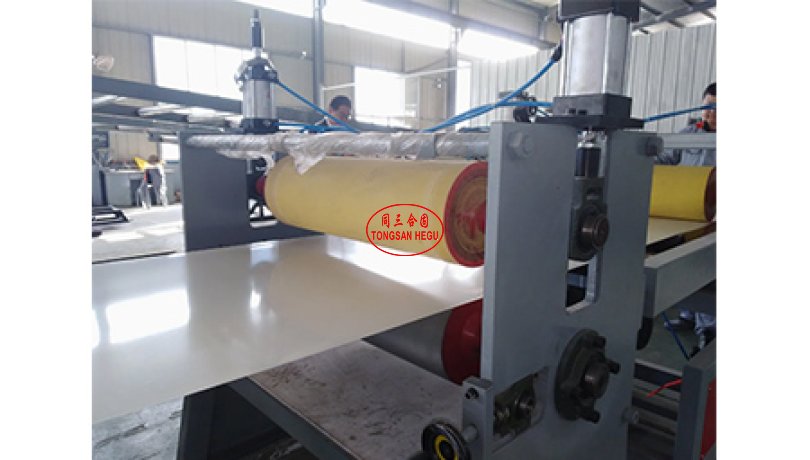

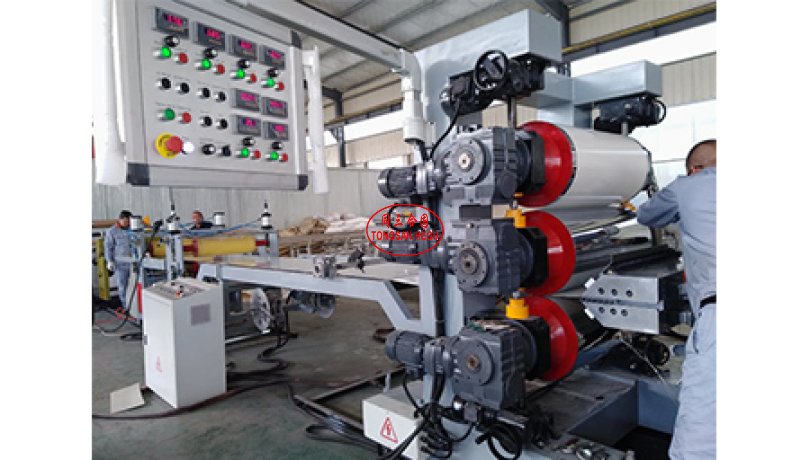

3,Three-roller calendaring machine
4,Cooling bracket
5,Hauling off device

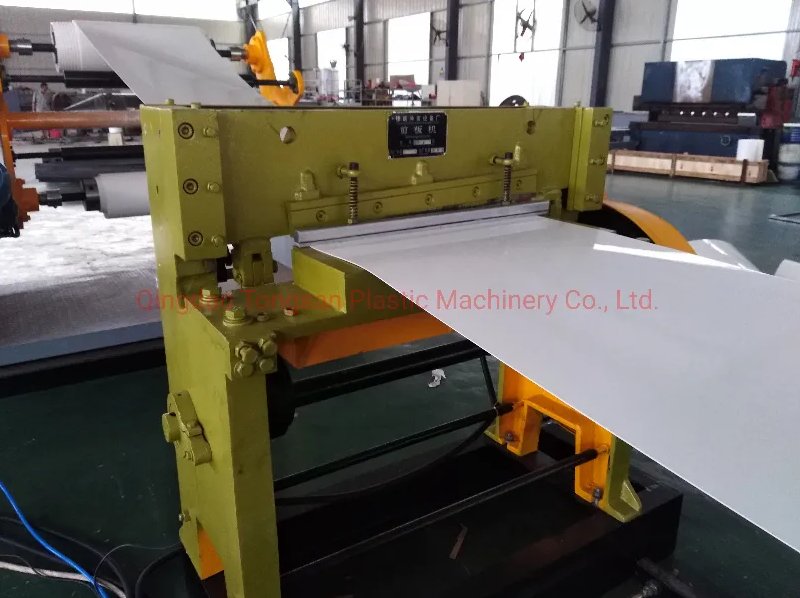

6,Cutting device
