We supply ID5.5mm-OD160mm single wall corrugated pipe machine. There are normal speed extrusion line and high speed extrusion line according to production needs.
We also supply ID32mm-OD75mm/ID32mm-OD110mm/ID50mm-OD180mm/ID90mm-OD315mm double wall corrugated pipe machine.
Corrugated pipe mold
We have our own workshop and CNC machines to make corrugated pipe molds by ourself, we also has design team for design the corrugated pipe molds according to customer's requirements.
Inquire now
Add to cart

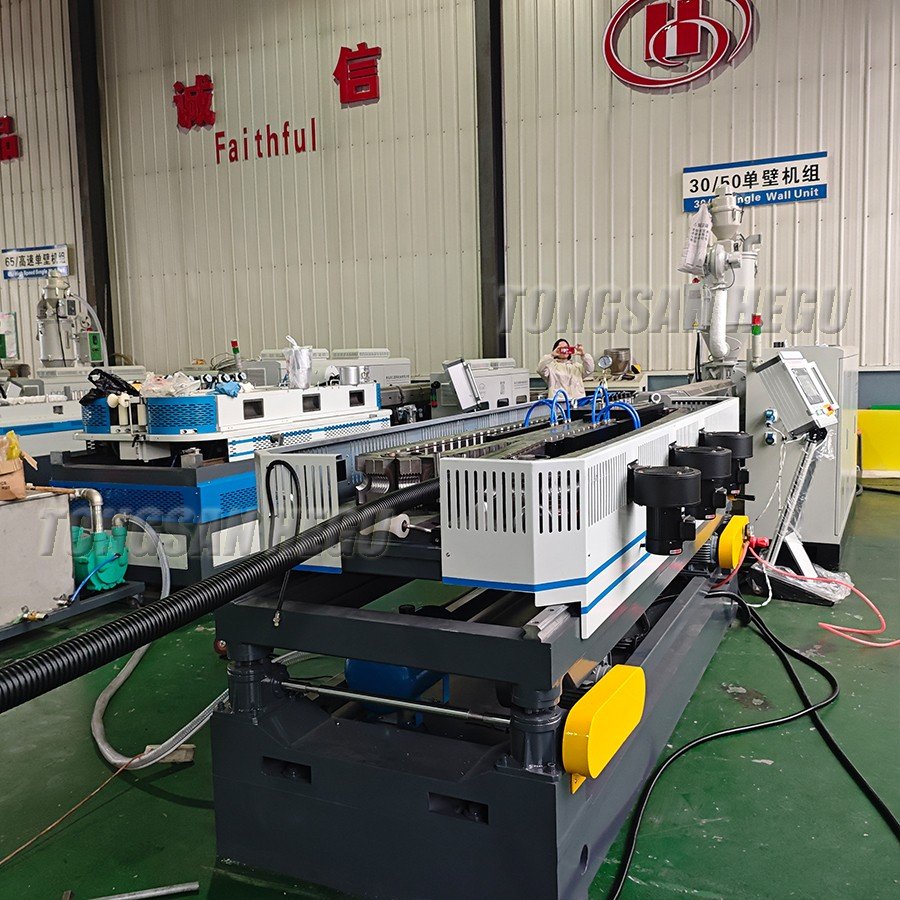

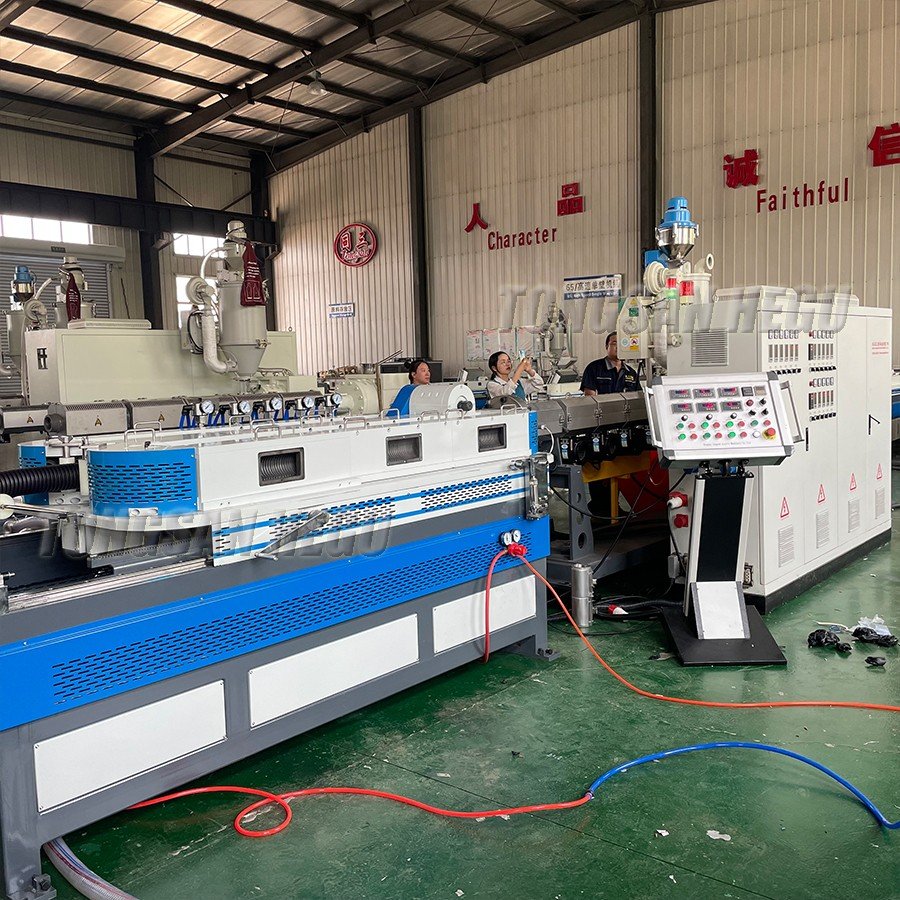

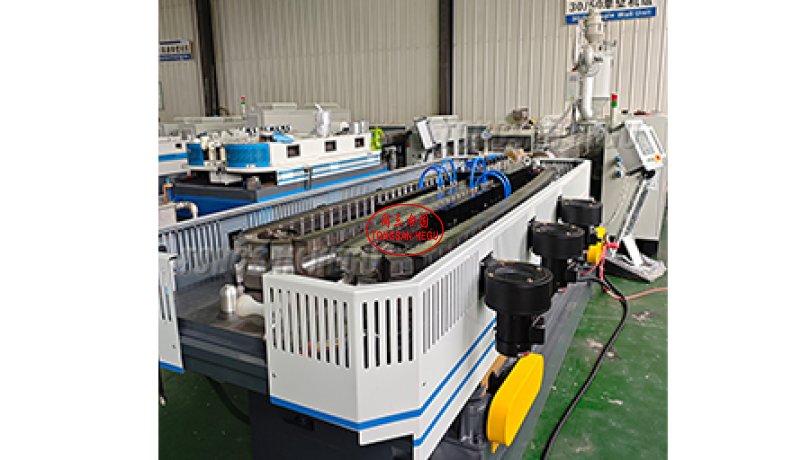

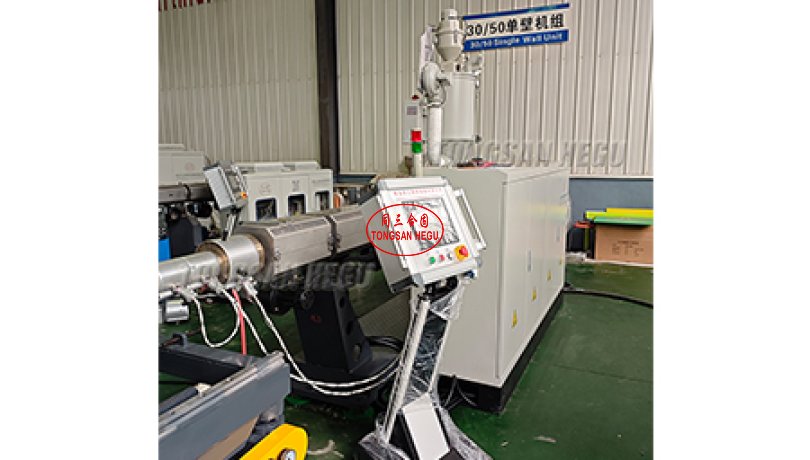

Normal speed single wall corrugated pipe extrusion line
The line speed can up to 12m/min. The forming machine equips with air cooling system for cooling the molds and pipe.
| Pipe diameter | Production speed | Extruder Model | Motor power |
| ID5.5-OD16mm | 6-8m/min | SJ45/28 | 7.5kw |
| ID9-OD32mm | 5-12m/min | SJ50/30 | 15kw |
| ID12-OD50mm | 3-10m/min | SJ65/30 | 30kw |
| ID16-OD63mm | 3-10/min | SJ65/30 | 30kw |
| ID32-OD110mm | 3-8m/min | SJ75/30 | 37kw |

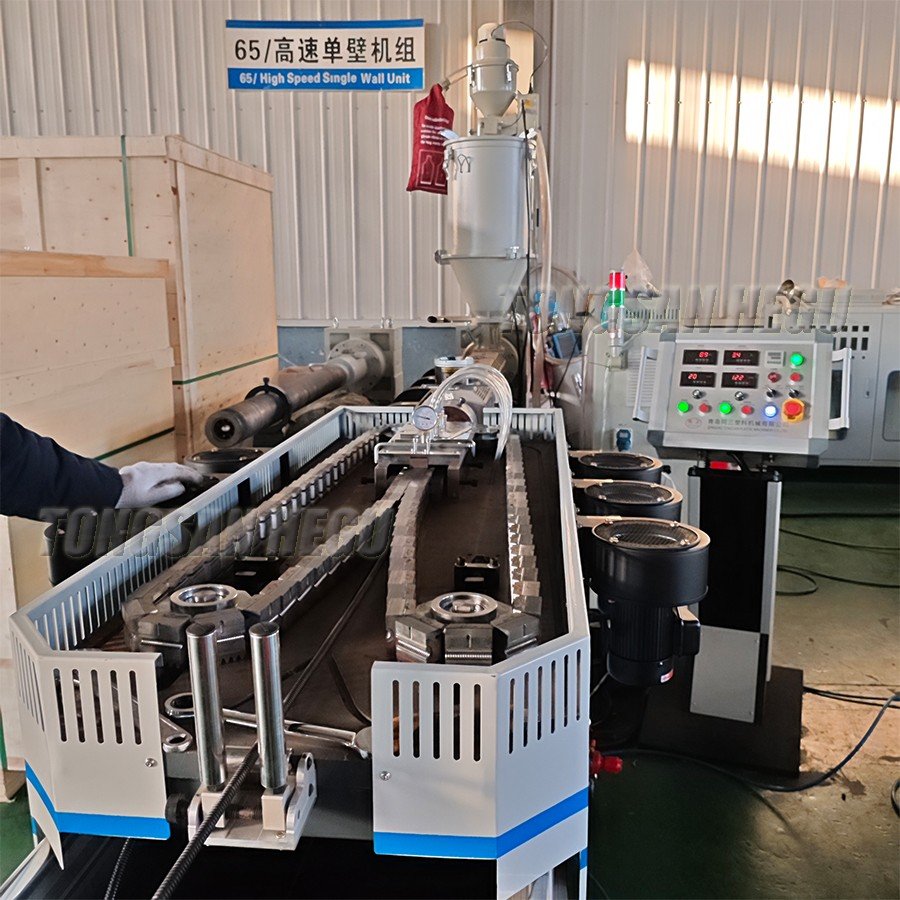

High speed single wall corrugated pipe extrusion line

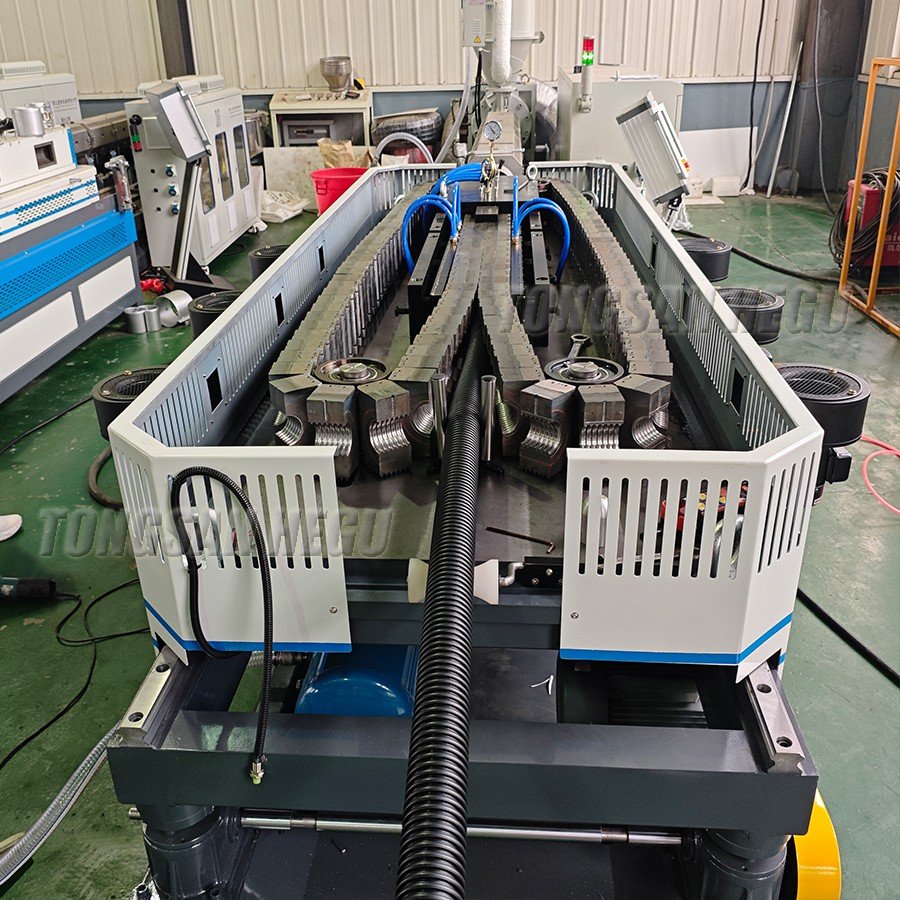

The line speed can up to 30m/min. High speed forming machine equips with automatic lubrication system and closed forced water-cooling system to achieve high-speed production.

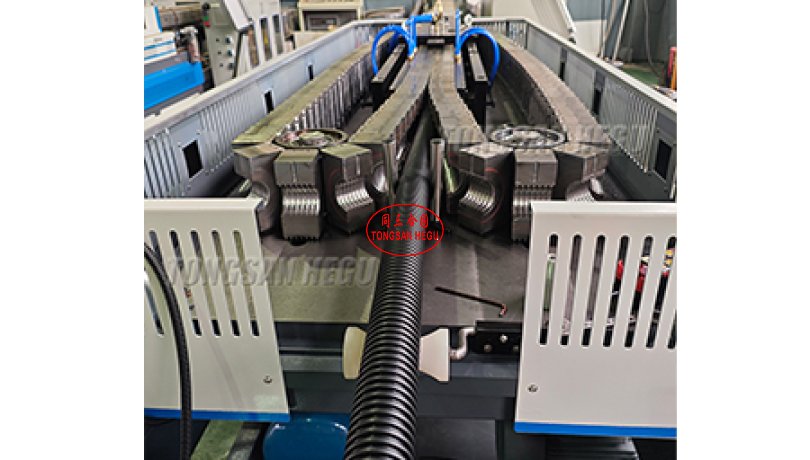

The corrugated pipe molds includes single cavity molds and double cavity molds.
| Pipe diameter | Production speed | Extruder Model | Motor power |
| ID5-OD14mm | 10-20m/min | SJ45/28 | 7.5kw |
| ID12-OD50mm | 20-30m/min | SJ65/30 | 30kw |
| ID32-OD110mm | 5-10m/min | SJ75/30 | 37kw |

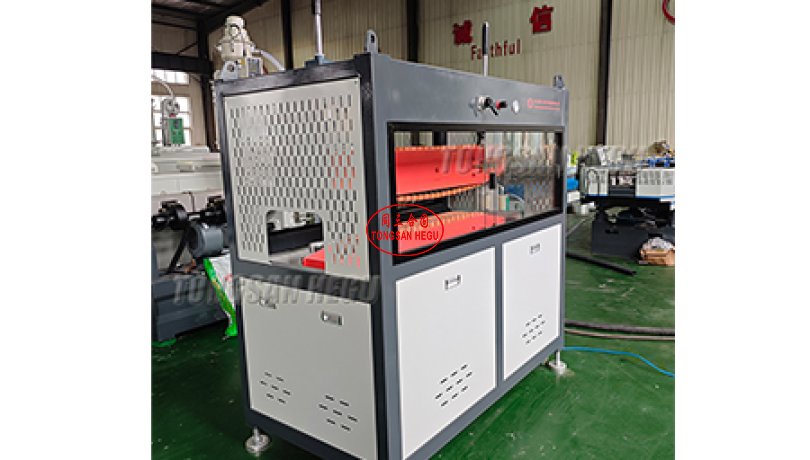

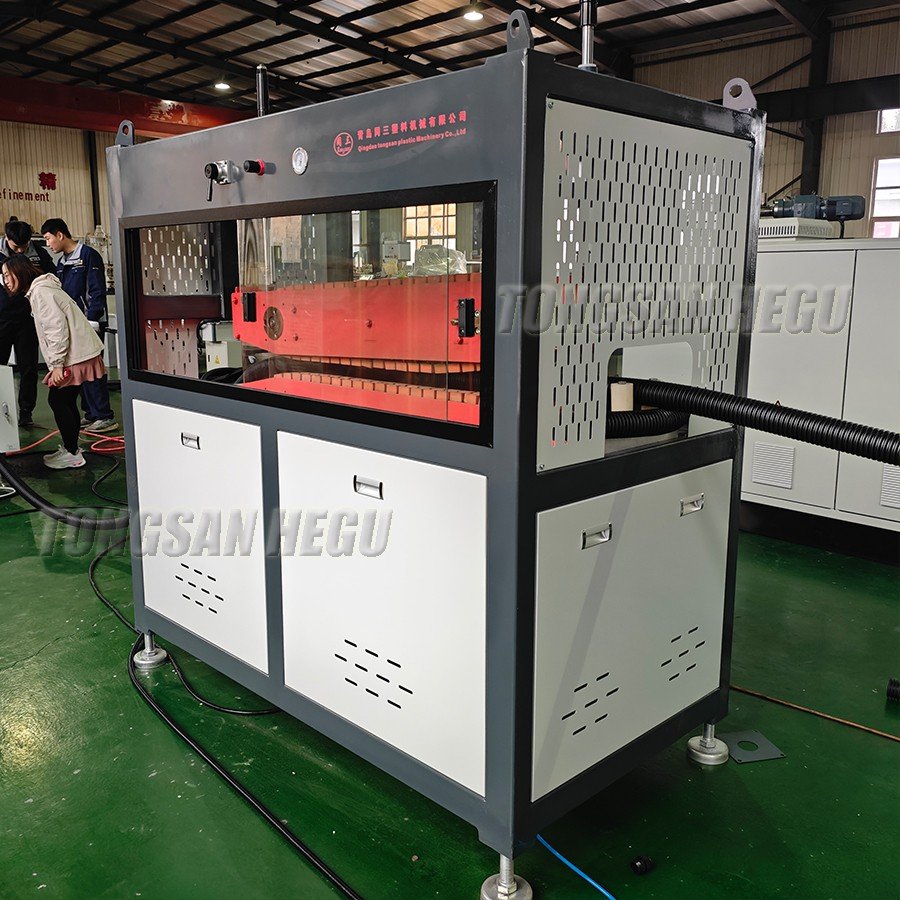

Vacuum forming single wall corrugated pipe extrusion line
The line can produce special design single wall corrugated pipe with vacuum forming mode. The forming machine equips with vacuum system.

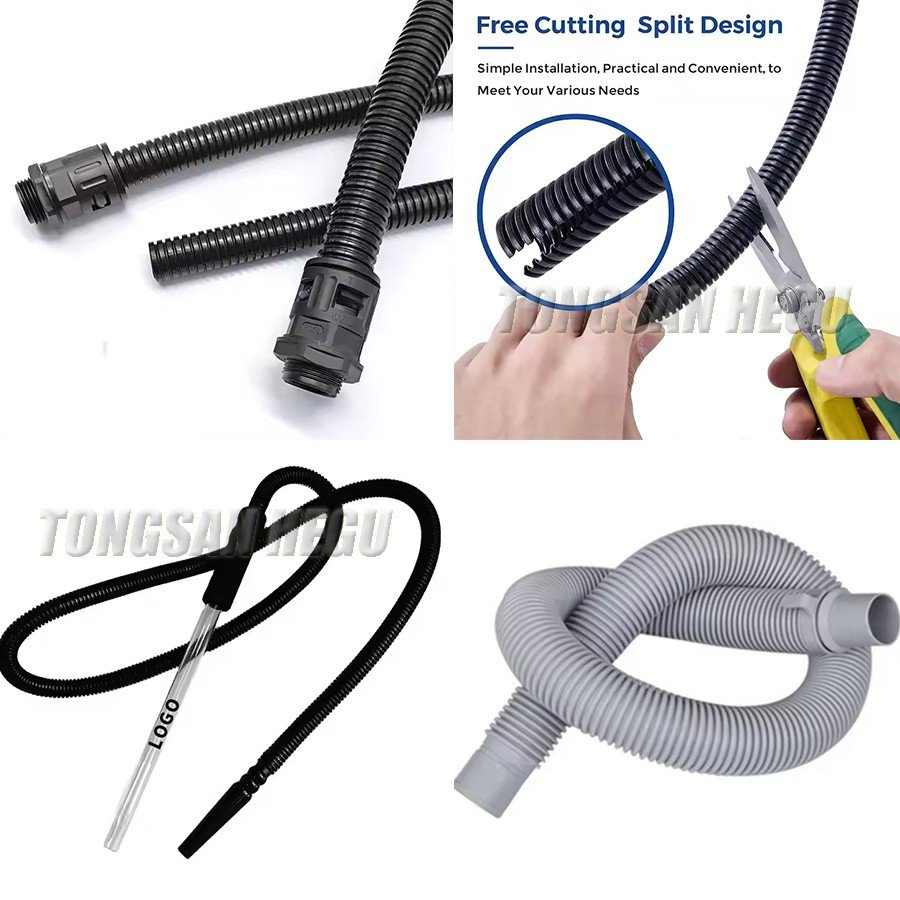

Specially designed for shisha hose/magic pipe/joint corrugated pipe.
| Pipe diameter | Production speed | Extruder Model | Motor power |
| ID9-OD32mm | 5-12m/min | SJ50/30 | 15kw |
| ID12-OD50mm | 3-10m/min | SJ65/30 | 30kw |
| ID32-OD110mm | 3-8m/min | SJ75/30 | 37kw |
Product Highlights:

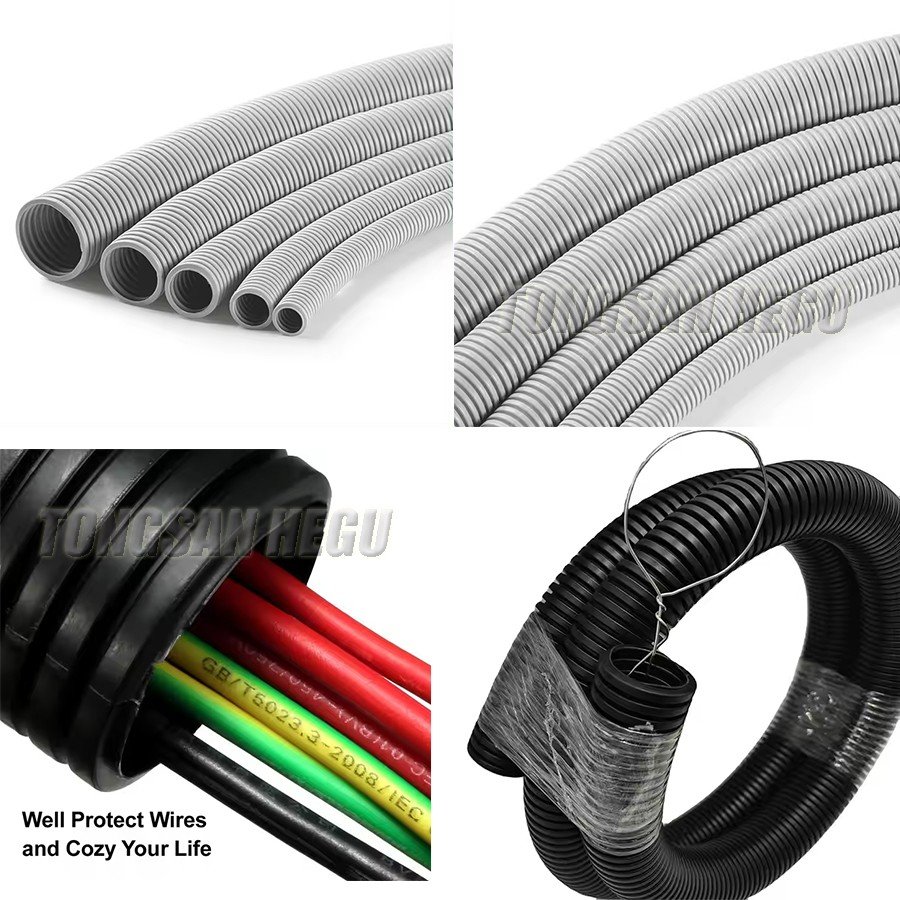

Versatile Size Range: Our machine can produce corrugated pipes with diameters ranging from 5mm to 110mm, making it suitable for a wide range of applications in various industries.
High-Speed Production: With its advanced design and powerful motor, our machine operates at high speeds, significantly increasing your production capacity and reducing lead times.
Automatic Operation: The fully automatic feature of our machine ensures consistent quality and reduces the need for manual intervention, saving you time and labor costs.
Single Wall Design: The single wall corrugated pipe produced by our machine is lightweight yet strong, providing excellent durability and flexibility for your applications.
Made in China: As a proud Chinese manufacturer, we adhere to strict quality control standards, ensuring that every machine we produce meets or exceeds industry expectations.
Why Choose Qingdao Tongsanhegu Plastic Machinery Manufacturing Co., Ltd.?
Experience and Expertise: With years of experience in the plastic machinery industry, we have the knowledge and expertise to provide you with the best solutions for your production needs.
Customizable Options: We offer customizable options to tailor our machines to your specific requirements, ensuring that you get the perfect fit for your production line.
Excellent Customer Service: Our dedicated customer service team is always available to answer your questions and provide support, ensuring a smooth and hassle-free experience.
Competitive Pricing: We offer competitive pricing without compromising on quality, making our machines an excellent value for your investment.
