Corrugated pipe mold
We have our own workshop and CNC machines to make corrugated pipe molds by ourself, we also has design team for design the corrugated pipe molds according to customer's requirements.
Installation and commission
We will send the technician to buyer's factory for installation and testing the whole line, and our engineer will do trainning to buyer's workers until they can run our machine for stably production.
After sell service: one year guarntee, forever service!
Within the warranty, we will provide efficient and on time maintains,if any spare parts damaged in the guarantee term because of quality problem, we will provide new spare parts for free for replacment.
Inquire now
Add to cart
High speed single wall corrugated pipe extrusion line

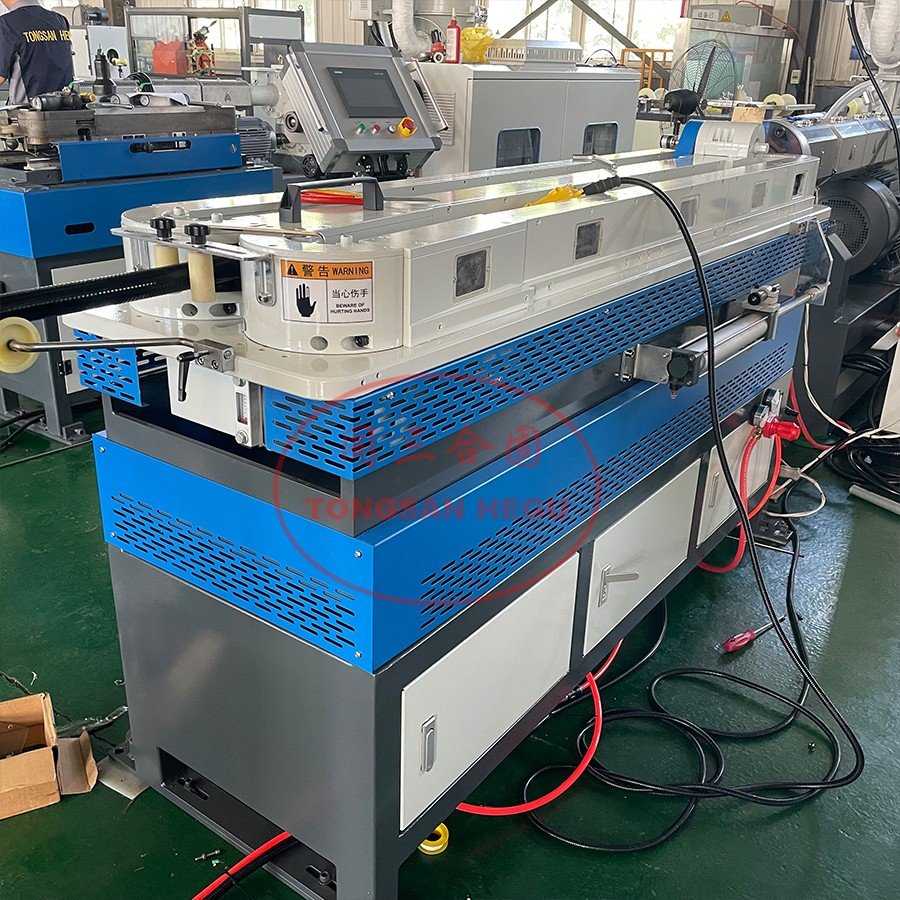

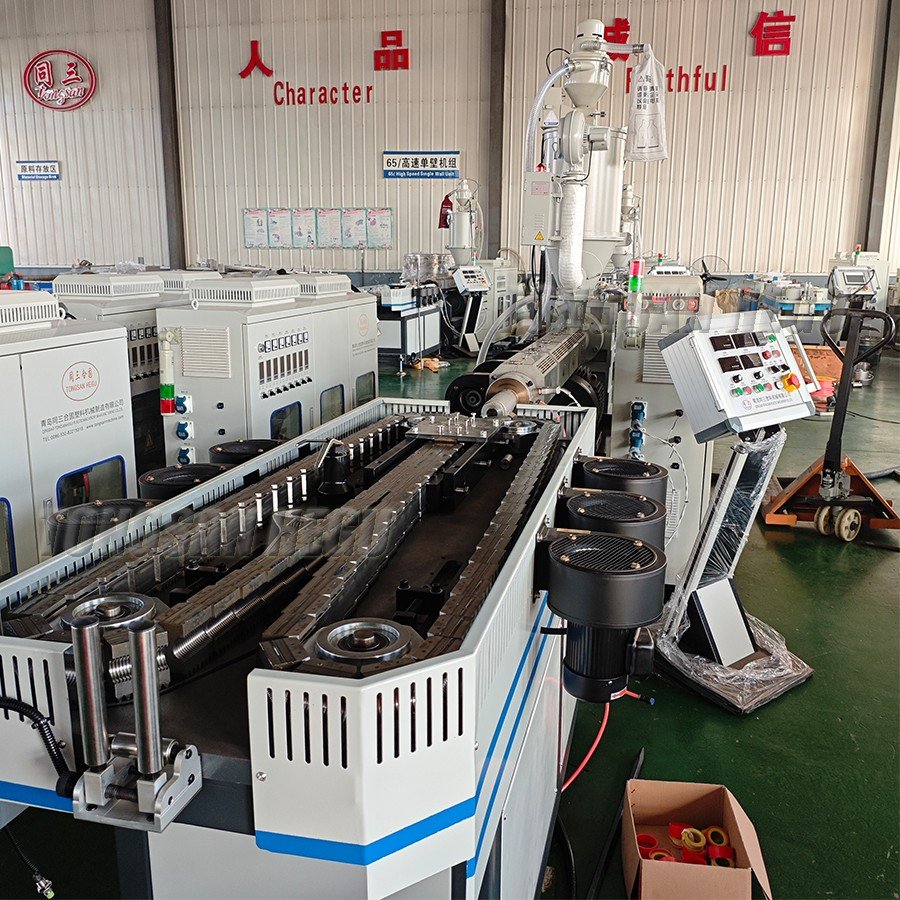

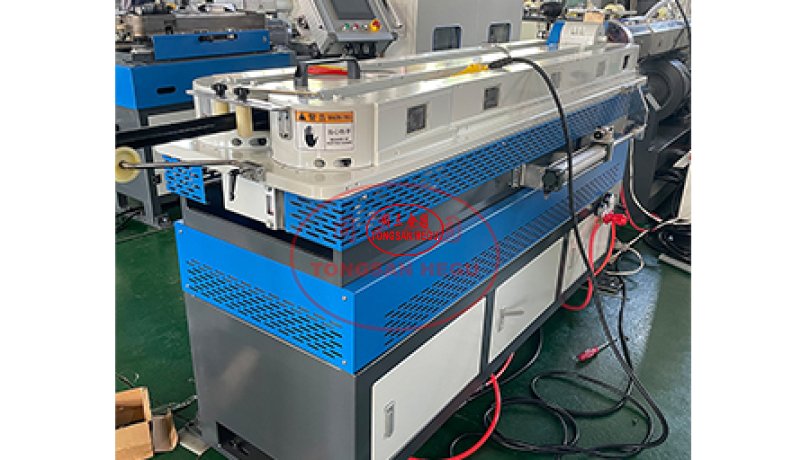

The line speed can up to 30m/min. High speed forming machine equips with automatic lubrication system and closed forced water-cooling system to achieve high-speed production.
The corrugated pipe molds includes single cavity molds and double cavity molds.
| Pipe diameter | Production speed | Extruder Model | Motor power |
| ID5-OD14mm | 10-20m/min | SJ45/28 | 7.5kw |
| ID12-OD50mm | 20-30m/min | SJ65/30 | 30kw |
Normal speed single wall corrugated pipe extrusion line
The line speed can up to 12m/min. The forming machine equips with air cooling system for cooling the molds and pipe.
| Pipe diameter | Production speed | Extruder Model | Motor power |
| ID5.5-OD16mm | 6-8m/min | SJ45/28 | 7.5kw |
| ID9-OD32mm | 5-12m/min | SJ50/30 | 15kw |
| ID12-OD50mm | 3-10m/min | SJ65/30 | 30kw |
| ID16-OD63mm | 3-10/min | SJ65/30 | 30kw |
| ID32-OD110mm | 3-8m/min | SJ75/30 | 37kw |
Vacuum forming single wall corrugated pipe extrusion line
The line can produce special design single wall corrugated pipe with vacuum forming mode. The forming machine equips with vacuum system.
Specially designed for shisha hose/magic pipe/joint corrugated pipe.
| Pipe diameter | Production speed | Extruder Model | Motor power |
| ID9-OD32mm | 5-12m/min | SJ50/30 | 15kw |
| ID12-OD50mm | 3-10m/min | SJ65/30 | 30kw |
| ID32-OD110mm | 3-8m/min | SJ75/30 | 37kw |
Product Highlights:
Versatile Size Range: Our machine can produce corrugated pipes with diameters ranging from 5mm to 110mm, making it suitable for a wide range of applications in various industries.
High-Speed Production: With its advanced design and powerful motor, our machine operates at high speeds, significantly increasing your production capacity and reducing lead times.
Automatic Operation: The fully automatic feature of our machine ensures consistent quality and reduces the need for manual intervention, saving you time and labor costs.
Single Wall Design: The single wall corrugated pipe produced by our machine is lightweight yet strong, providing excellent durability and flexibility for your applications.
Made in China: As a proud Chinese manufacturer, we adhere to strict quality control standards, ensuring that every machine we produce meets or exceeds industry expectations.
